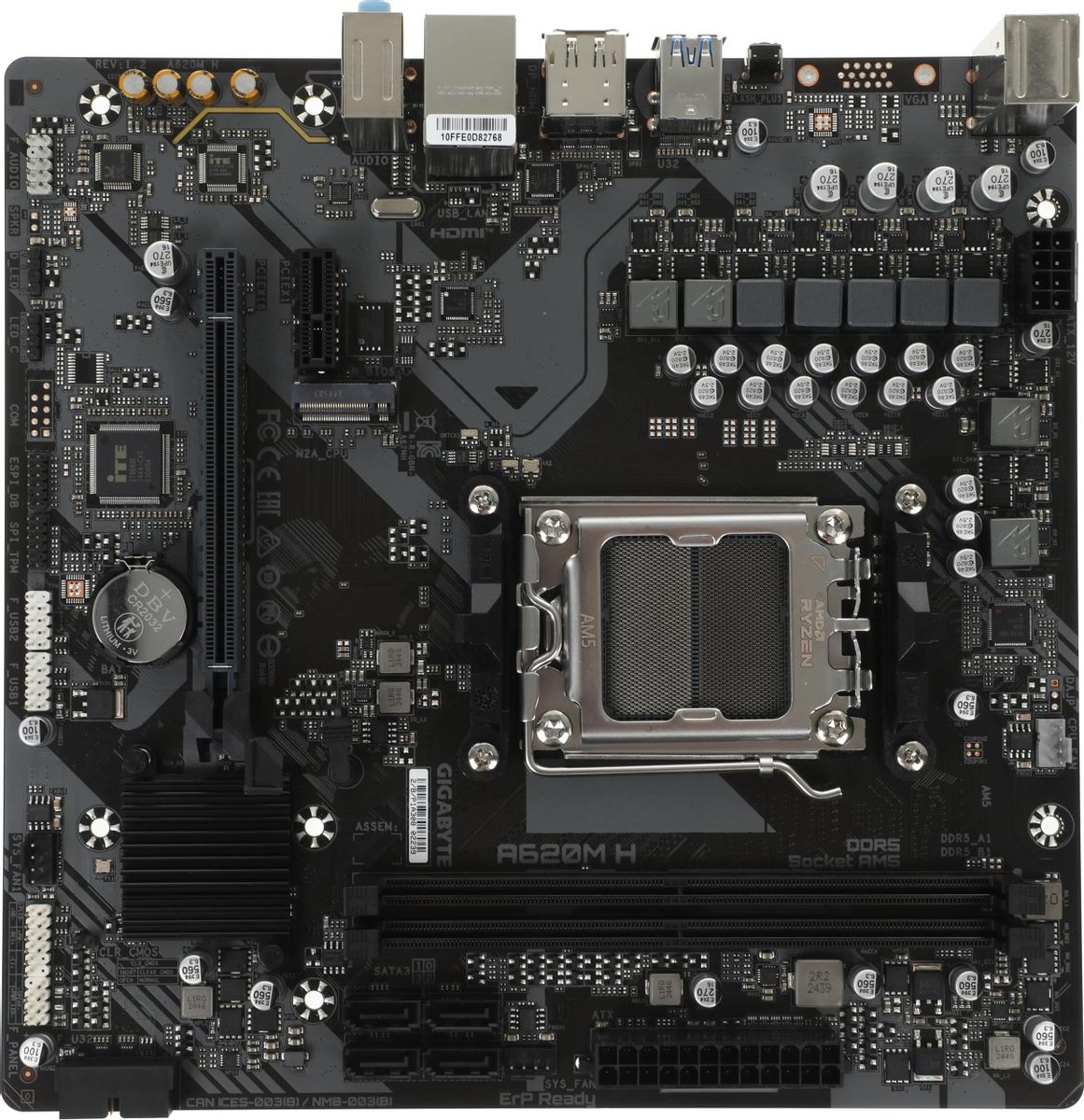

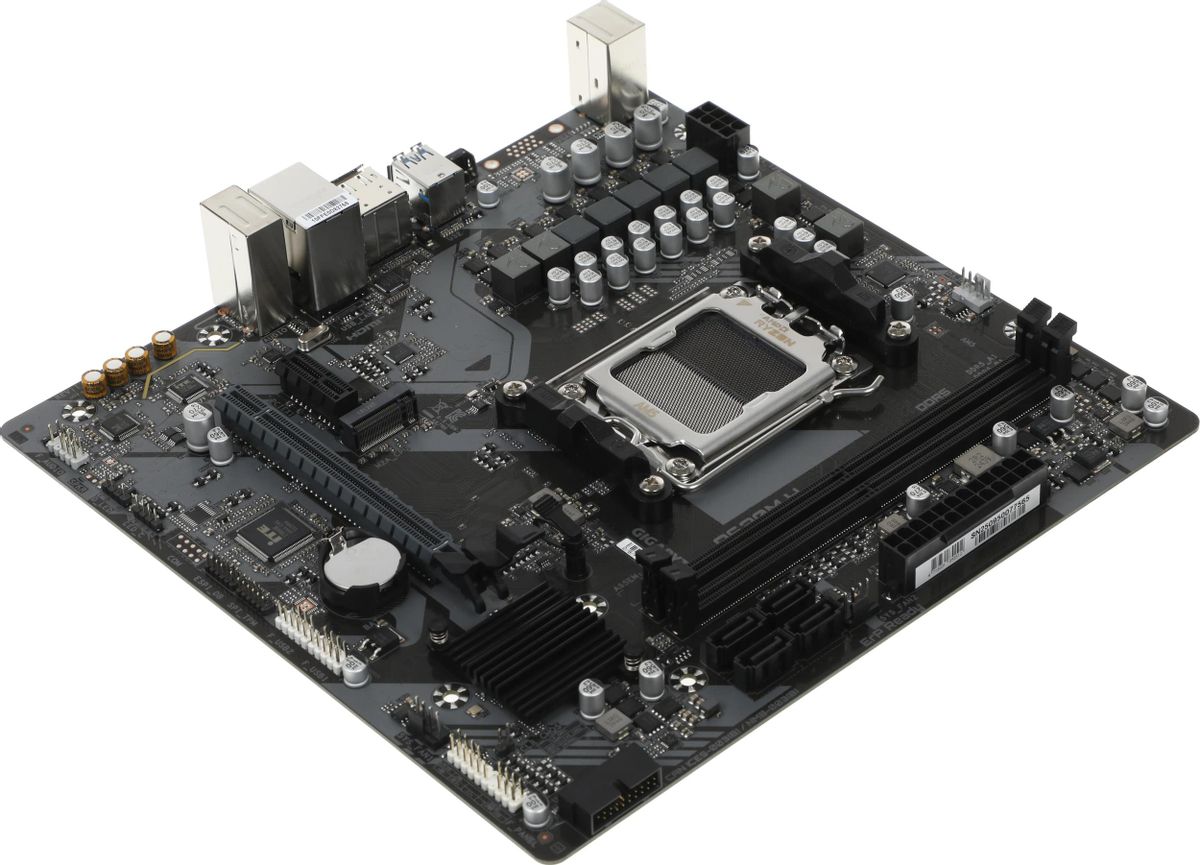

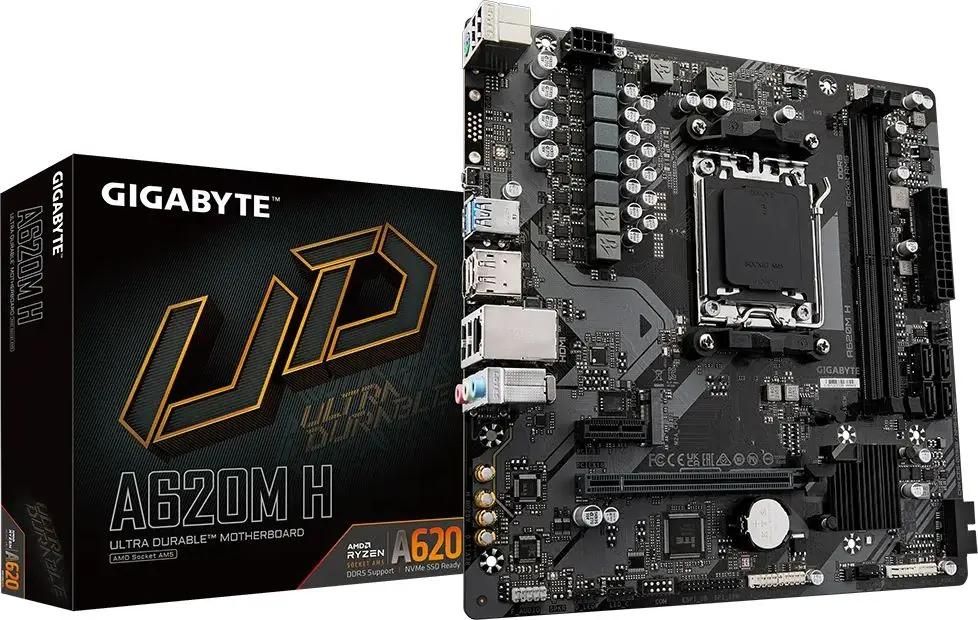

GIGABYTE A620M H Rev. 2.2 — плата AM5 с DDR5

Support for DDR5 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 МТ/с memory modules

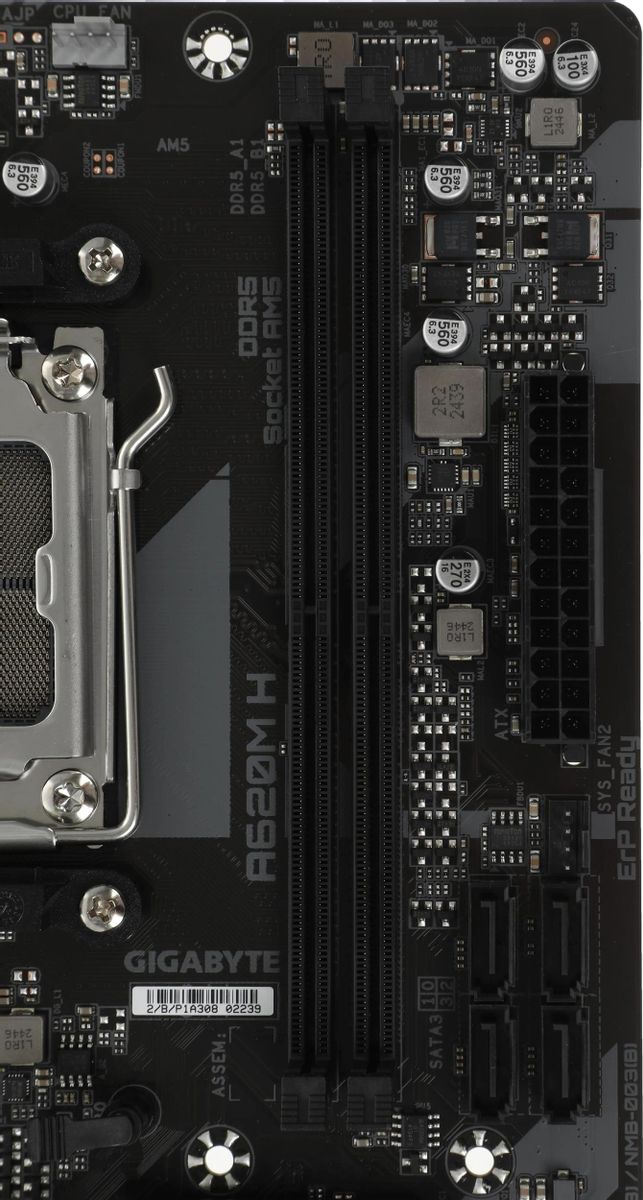

2 × DDR5 DIMM sockets supporting up to 128 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Integrated Graphics Processor with AMD Radeon Graphics support: 1 × DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible разъём.

(Graphics specifications may vary depending on CPU support.)

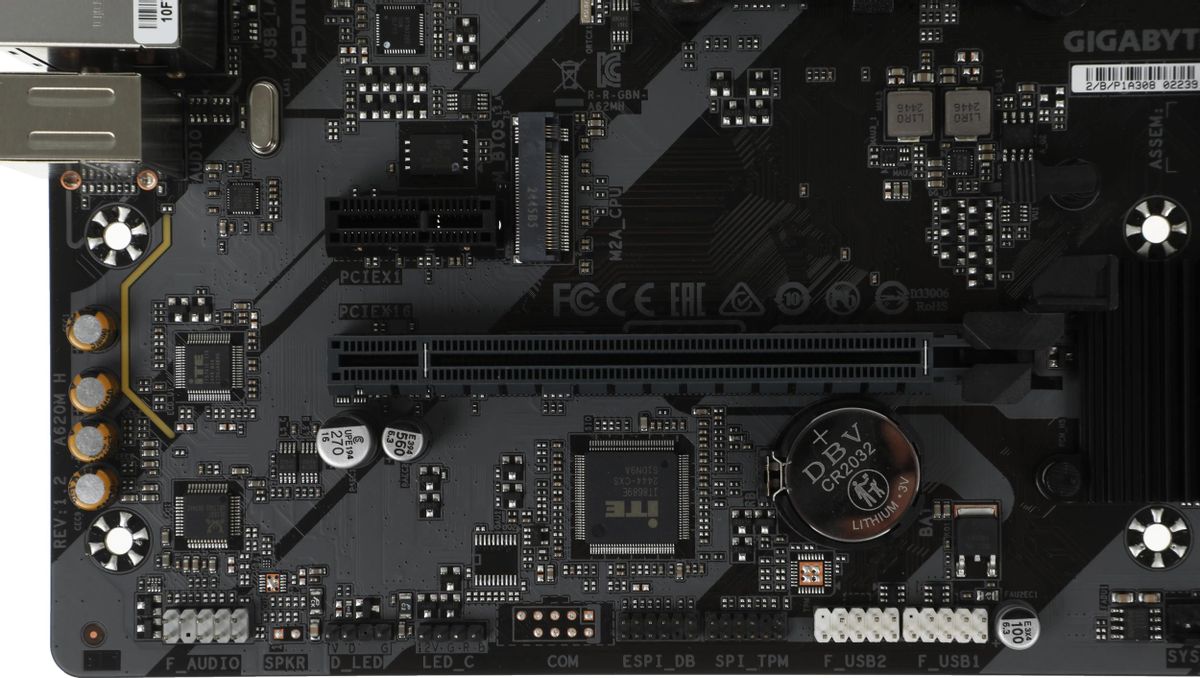

1 × PCI Express x16 slot, integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset: 1 × PCI Express x1 slot, supporting PCIe 3.0 and running at x1

1 × M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

4 × SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

4 × USB 2.0/1.1 разъём

1 × PS/2 клавиатура/мышь разъём

1 × Q-Flash Plus кнопка

2 × USB 3.2 Gen 1 разъём

1 × DisplayPort*

1 × HDMI разъём*

1 × RJ-45 разъём

3 × аудиоразъёмы

* Actual support may vary by CPU.

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × CPU fan header

2 × system fan headers

2 × addressable LED strip headers

1 × RGB LED strip header

1 × M.2 Socket 3 connector

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × reset jumper

1 × Clear CMOS jumper
