Материнская плата ASUS ROG Strix B850-I Gaming WIFI

2 x DIMM slots, max. 128GB, DDR5

Supports up to

8200+MT/s(OC) with Ryzen 9000 Series Processors,

9600+MT/s(OC) with Ryzen 8000 Series Processors,

8000+MT/s(OC) with Ryzen 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMI port***

1 x USB 10Gbps ports support USB Type-C display outputs****

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

*** Supports 4K@60Hz as specified in HDMI 2.1.

****Supports max. 4K@60Hz as specified in DisplayPort 1.4a

***** VGA resolution support depends on processors' or graphic cards' resolution.

AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Release Slim

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot with Q-Release Slim

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen 7000 & 9000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)

M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)

M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*

* Specifications vary by CPU types.

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

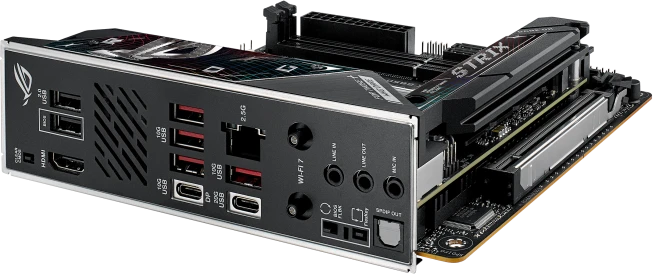

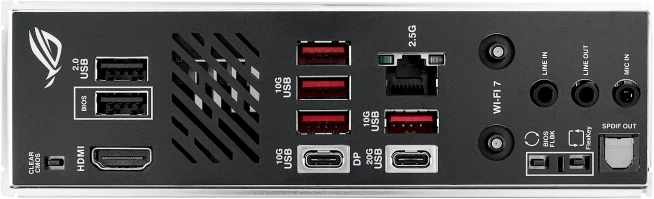

1 x USB 20Gbps port(s)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C with DP Alt mode)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Intel 2.5Gb Ethernet port

3 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

1 x FlexKey button

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Extra Flow Fan header

1 x 4-pin AIO Pump header

1 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers

1 x CPU Over voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header
