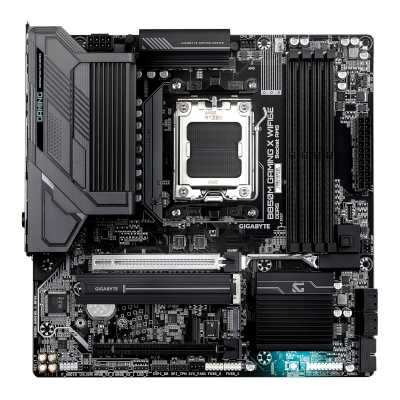

MB Gigabyte B850M GAMING X WIFI6E

1 × HDMI разъём

2 × DisplayPorts

1 × Q-Flash Plus кнопка

1 × PS/2 клавиатура/мышь разъём

1 × USB 3.2 Gen 2 Type-A разъём (red)

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 2

2 × USB 3.2 Gen 1 разъём

4 × USB 2.0/1.1 разъём

1 × RJ-45 разъём

2 × antenna connectors (2T2R)

Š3 × аудиоразъёмы

Actual support may vary by CPU

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 МТ/с memory modules.

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 2 × DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

Realtek Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × CPU fan header

1 × CPU fan/water cooling pump header

1 × system fan header

1 × system fan/water cooling pump header

3 × addressable RGB Gen2 LED strip headers

1 × RGB LED strip header

4 × SATA 6Gb/s connectors

2 × M.2 Socket 3 connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 2

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 × reset кнопка

1 × reset jumper

1 × Clear CMOS jumper
