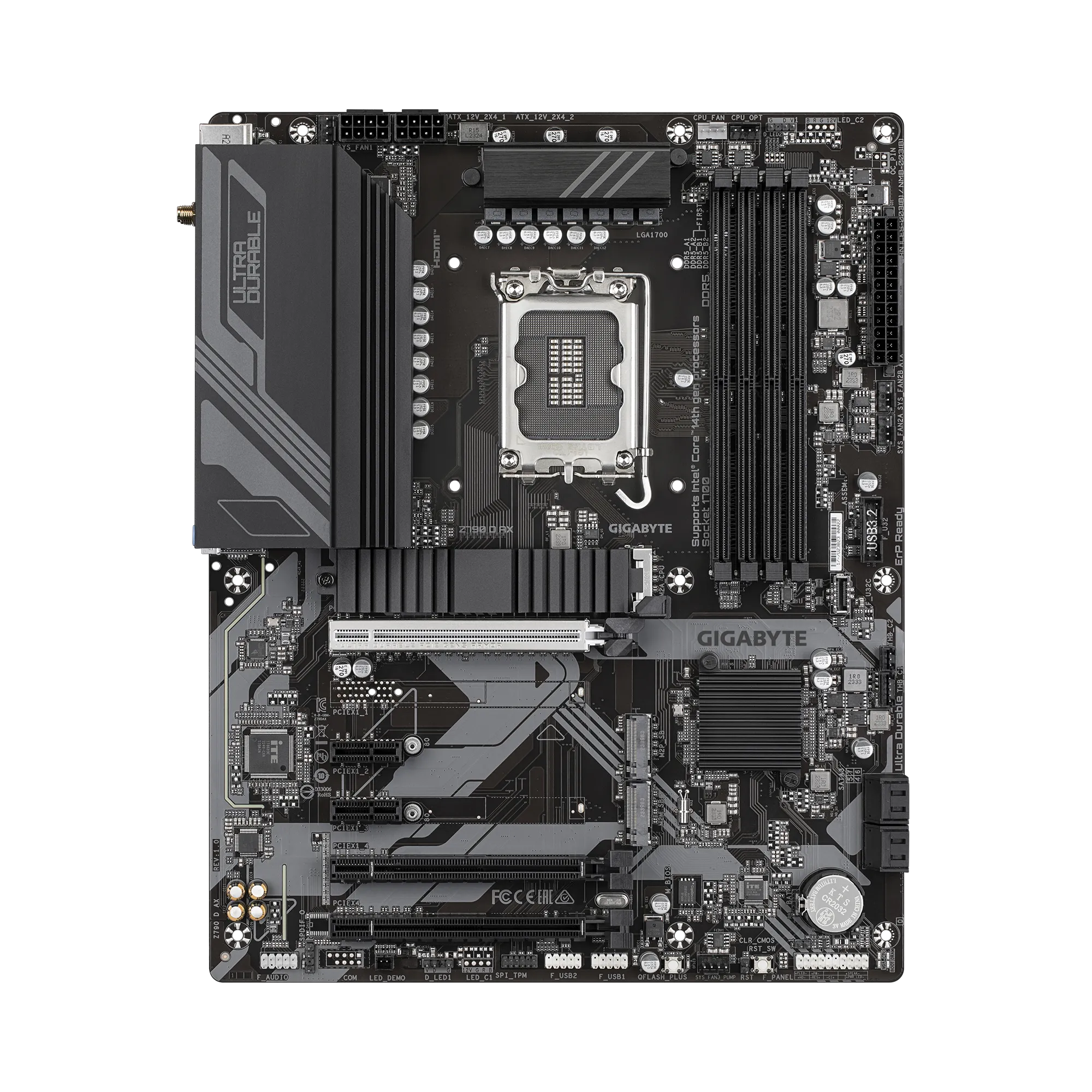

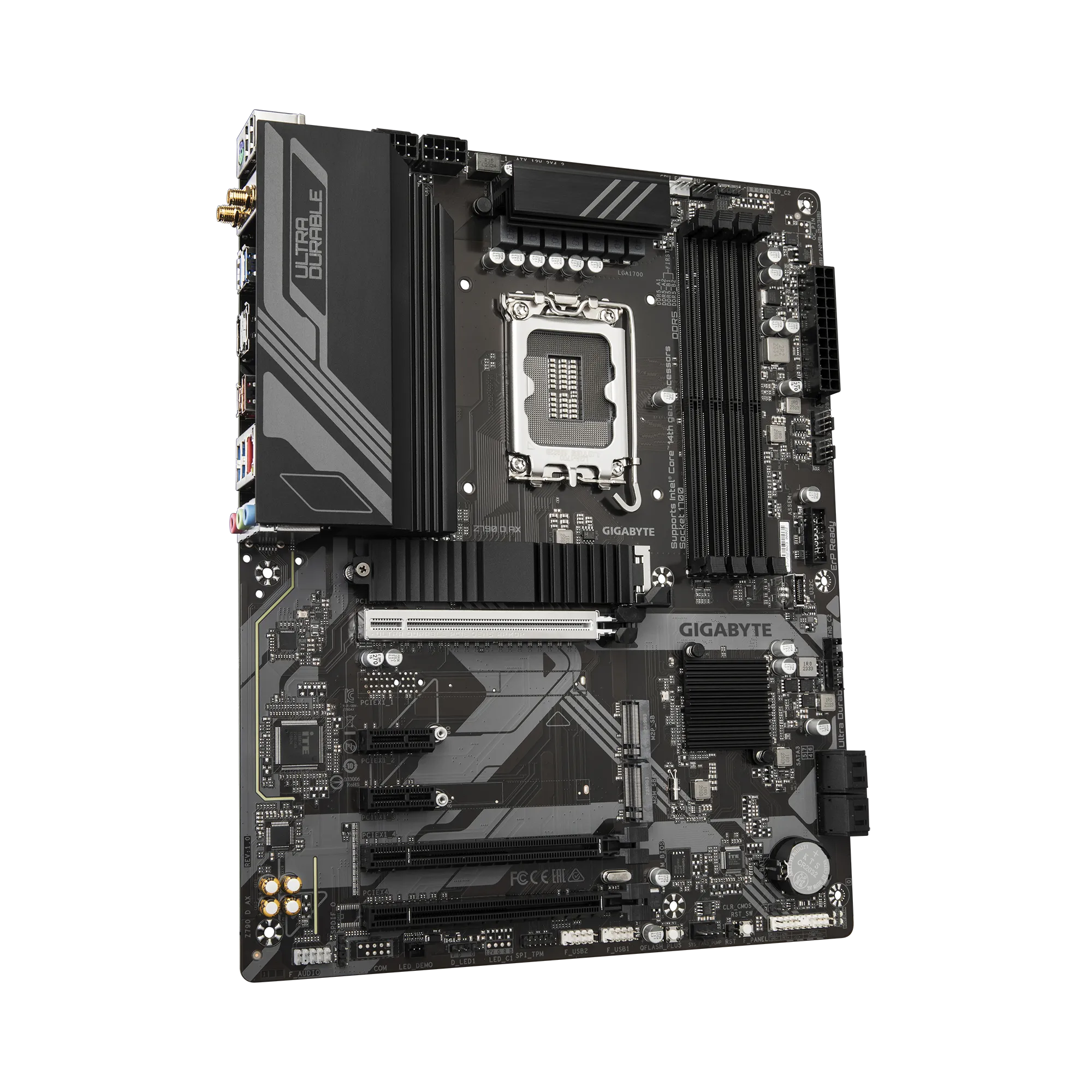

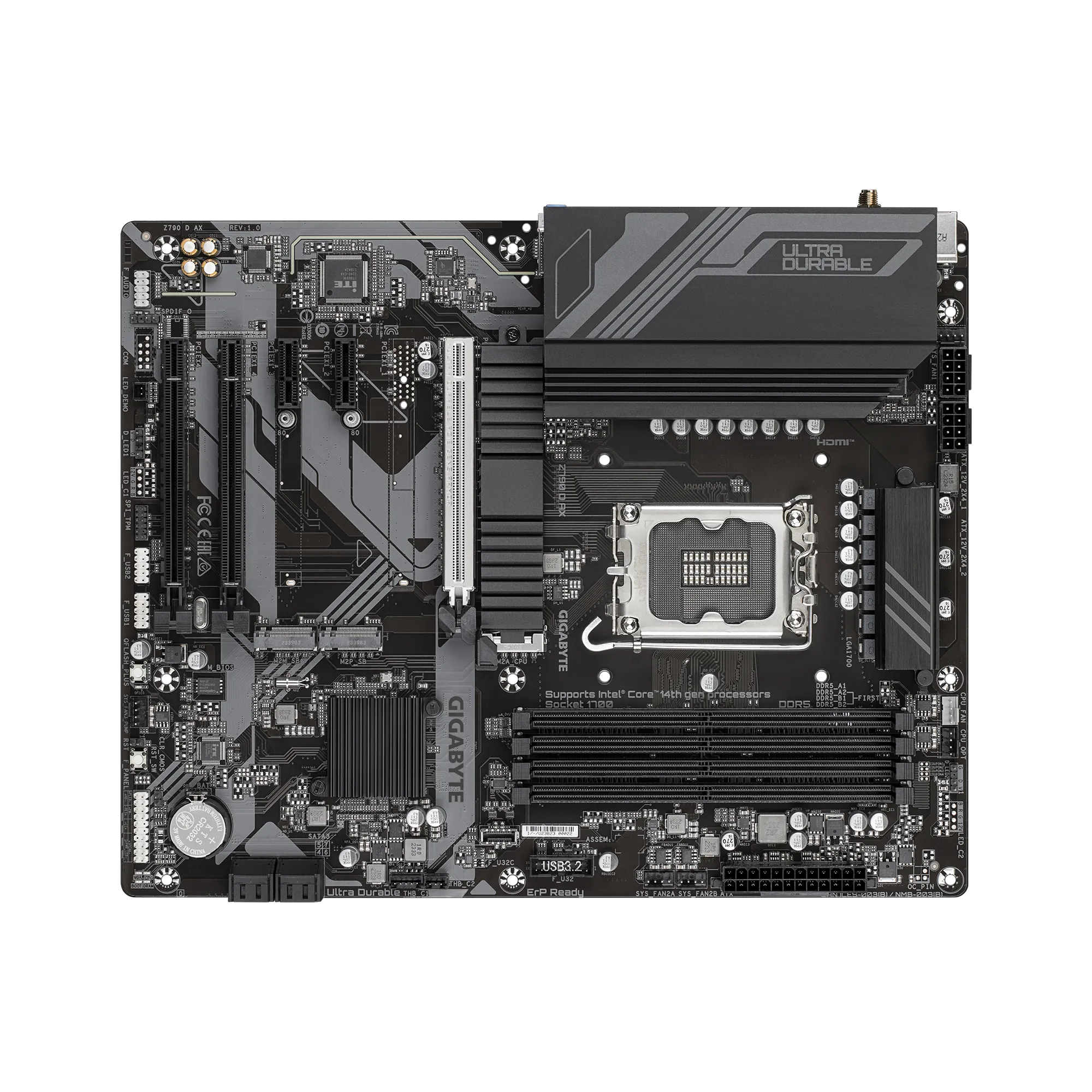

MB Gigabyte Z790 D AX Soc-1700 (Z790) 3xPCI-Ex16 2xPCI-Ex1 3xM.2 2.5GbE LAN RAID 0/1/5/10 4xDDR5 7600MHz+ H…

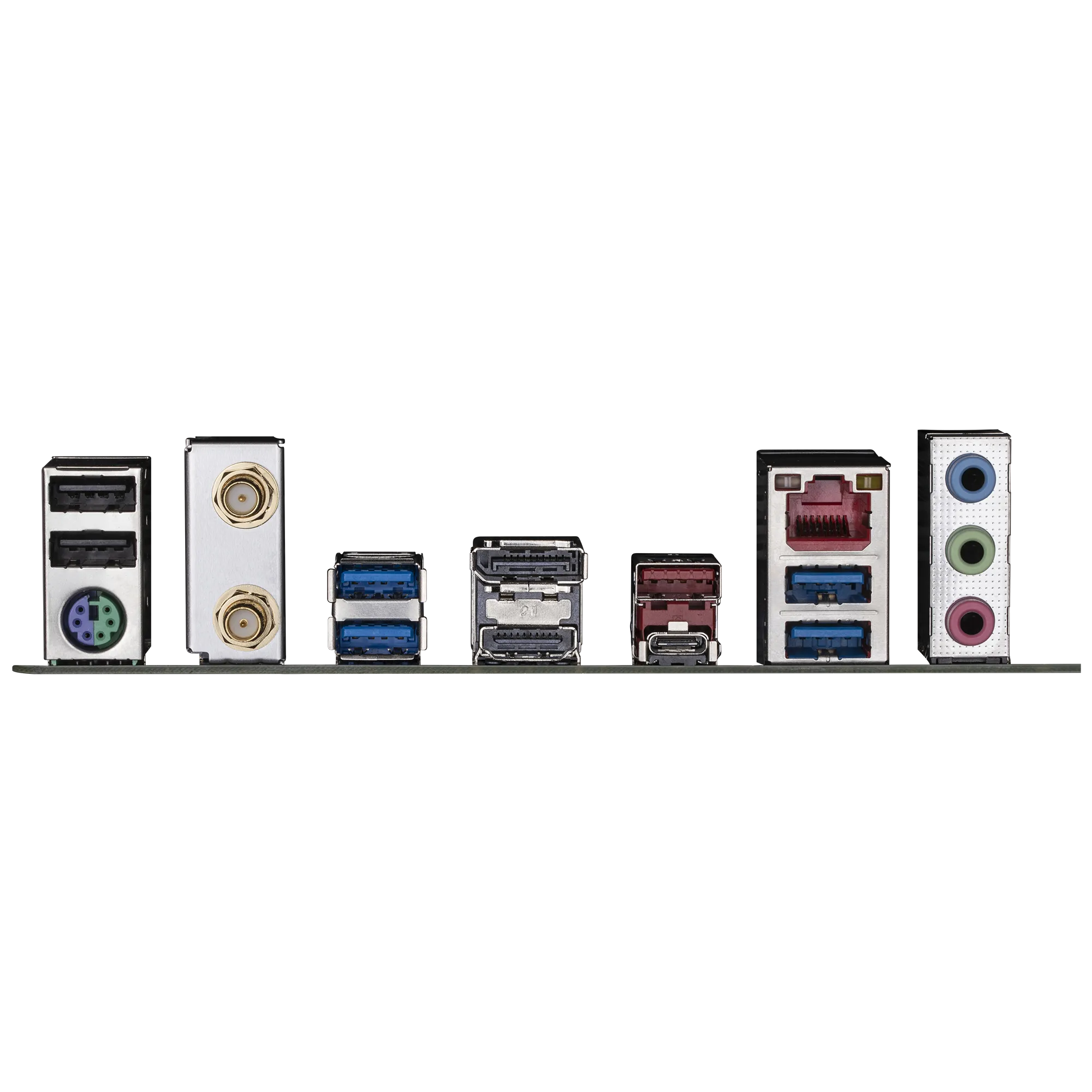

1 × PS/2 клавиатура/мышь разъём

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 2

1 × USB 3.2 Gen 2 Type-A разъём (red)

4 × USB 3.2 Gen 1 разъём

2 × USB 2.0/1.1 разъём

2 × SMA antenna connectors (2T2R)

1 × HDMI разъём*

1 × DisplayPort*

1 × RJ-45 разъём

3 × аудиоразъёмы

* Actual support may vary by CPU.

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

14th and 13th Generation Intel Core i9/i7 Pocessors:

- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 МТ/с memory modules

13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:

- Support for DDR5 4800/4400 МТ/с memory modules

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor-Intel HD Graphics support:

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 1 × DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

CPU:

- 1 × PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 × PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 × PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

- 2 × PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

CPU:

- 1 × M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 × M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 1 × M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 × SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Intel Wi-Fi 6E AX211 (PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

1 × 24-pin ATX main power connector

2 × 8-pin ATX 12V power connectors

1 × CPU fan header

1 × CPU fan/water cooling pump header

3 × system fan headers

1 × system fan/water cooling pump header

2 × addressable LED strip headers

3 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × S/PDIF Out header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 1

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

2 × Thunderbolt add-in card connectors

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × reset кнопка

1 × Q-Flash Plus кнопка

1 × reset jumper

1 × Clear CMOS jumper
