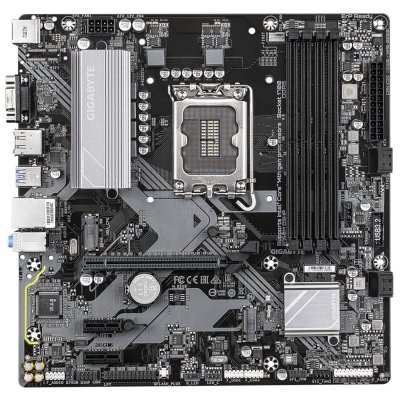

Материнская плата Soc1700 B760M D3HP Gigabyte Intel B760, 4xDDR5 до 7200 МГц, 1xPCIe x16 4.0, 2xPCIe x1, 2x…

2 × USB 2.0/1.1 разъём

1 × PS/2 клавиатура/мышь разъём

1 × D-Sub разъём*

1 × DisplayPort*

1 × HDMI разъём*

3 × USB 3.2 Gen 1 разъём

1 × RJ-45 разъём

3 × аудиоразъёмы

* Actual support may vary by CPU.

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

14th and 13th Generation Intel Core i9/i7 Processors:

- Support for DDR5 5600/5200/4800/4400 МТ/с memory modules

13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:

- Support for DDR5 4800/4400 МТ/с memory modules

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor-Intel HD Graphics support:

- 1 × D-Sub разъём, supporting a maximum resolution of 1920x1200@60 Hz

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 1 × DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

CPU:

- 1 × PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 2 × PCI Express x1 slots, supporting PCIe 3.0 and running at x1

CPU:

- 1 × M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 × M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 × SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × CPU fan header

3 × system fan headers

1 × addressable LED strip header

1 × RGB LED strip header

2 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 1

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × serial разъём header

1 × parallel разъём header

1 × S/PDIF Out header

1 × Q-Flash Plus кнопка

1 × reset jumper

1 × Clear CMOS jumper
