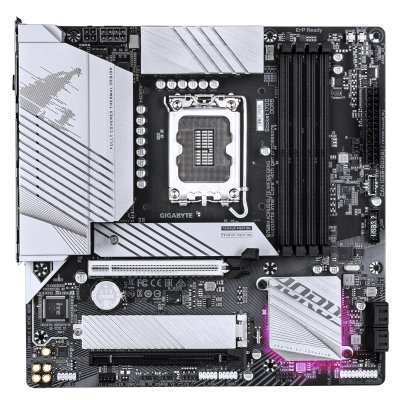

MB Gigabyte B760M AORUS ELITE WIFI6E GEN5

2 × antenna connectors (2T2R)

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 2x2

1 × USB 3.2 Gen 2 Type-A разъём (red)

3 × USB 3.2 Gen 1 разъём

4 × USB 2.0/1.1 разъём

1 × HDMI разъём

1 × DisplayPort

1 × RJ-45 разъём

1 × optical S/PDIF Out connector

2 × аудиоразъёмы

Actual support may vary by CPU.

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core,Pentium Gold and Celeron Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 МТ/с memory modules

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor-Intel HD Graphics support:

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 1 × DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

CPU:

- 1 × PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 × PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

CPU:

- 1 × M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 × M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 × SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Intel Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × 4-pin ATX 12V power connector

1 × CPU fan header

3 × system fan headers

3 × addressable RGB Gen2 LED strip headers

1 × RGB LED strip header

2 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 2

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

2 × Thunderbolt add-in card connectors

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × Q-Flash Plus кнопка

1 × reset кнопка

1 × reset jumper

1 × Clear CMOS jumper
