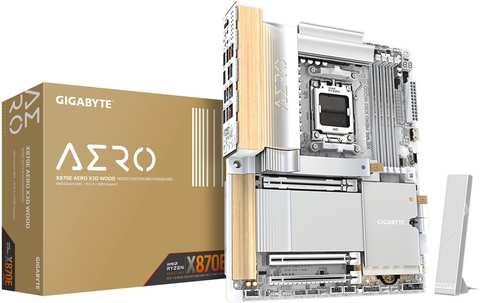

Материнская плата GigaByte X870E Aero X3D Wood rev. 1.0

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 МТ/с memory modules.

Support for DDR5 5200/4800 МТ/с memory modules

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:

- 2 × USB4 USB Type-C разъём, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 1 × front HDMI разъём, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)

1 × PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 × PCI Express x16 slot (PCIEX8), integrated in the CPU:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode

* The PCIEX8 slot becomes unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.

Chipset:

- 1 × PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

1 × M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 × M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector

and the USB4 разъём supported by the ASMedia USB4 controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2

processor, the USB4 разъём supported by the ASMedia USB4 controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

2 × M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 × SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

MediaTek Wi-Fi 7 MT7927, RZ738

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 ГГц band availability depends on individual country's regulations.

***Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Realtek ALC1220 CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

1 × Q-Flash Plus кнопка

1 × Clear CMOS кнопка

1 × power кнопка

1 × reset кнопка

1 × HDMI разъём

2 × USB4 USB Type-C разъём (DisplayPorts )

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 2x2

5 × USB 3.2 Gen 2 Type-A разъём (red)

3 × USB 3.2 Gen 1 разъём

2 × RJ-45 разъём

2 × antenna connectors (2T2R)

2 × аудиоразъёмы

1 × optical S/PDIF Out connector

Actual support may vary by CPU.

1 × 24-pin ATX main power connector

2 × 8-pin ATX 12V power connectors

1 × CPU fan header

1 × CPU fan/water cooling pump header

4 × system fan headers

2 × system fan/water cooling pump headers

3 × addressable RGB Gen2 LED strip headers

1 × RGB LED strip header

4 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 2x2

2 × USB 3.2 Gen 1 headers

2 × USB 2.0/1.1 headers

1 × noise detection header

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × HDMI разъём

1 × reset jumper

1 × Clear CMOS jumper

2 × temperature sensor headers

Actual support may vary by CPU.
