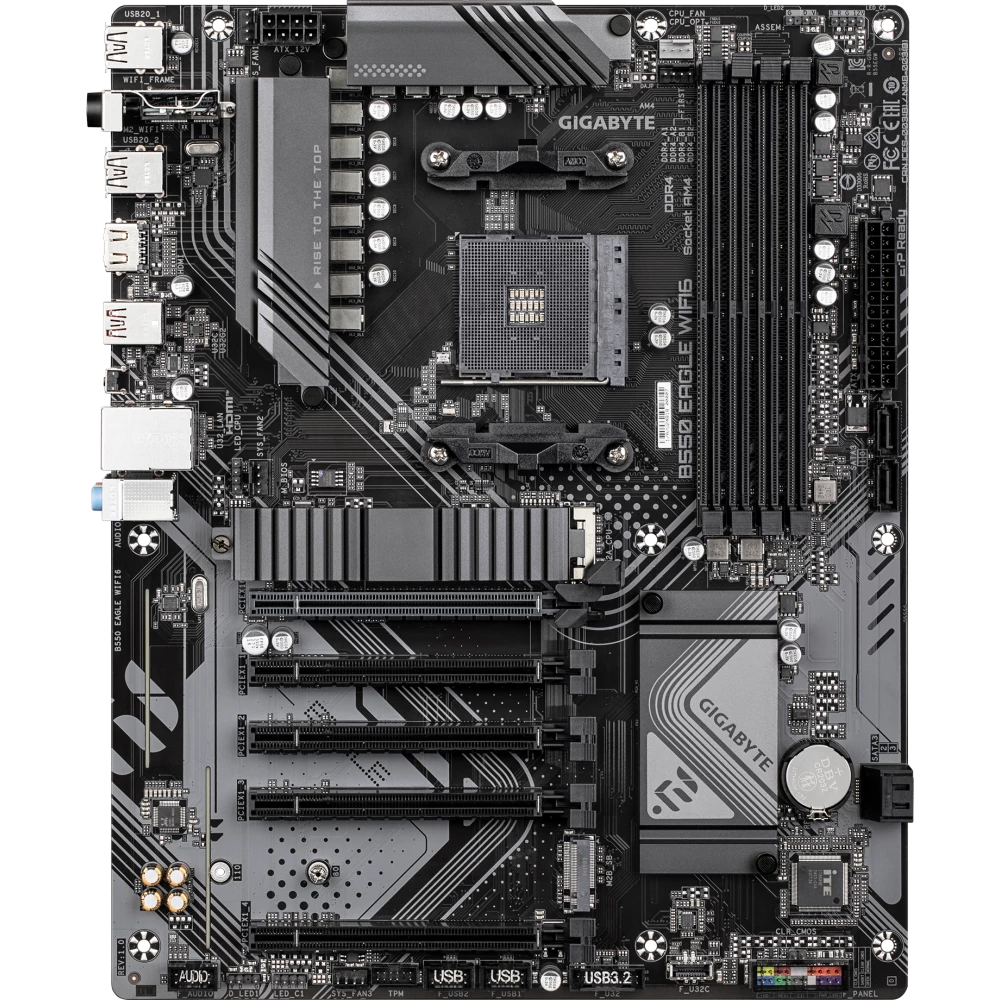

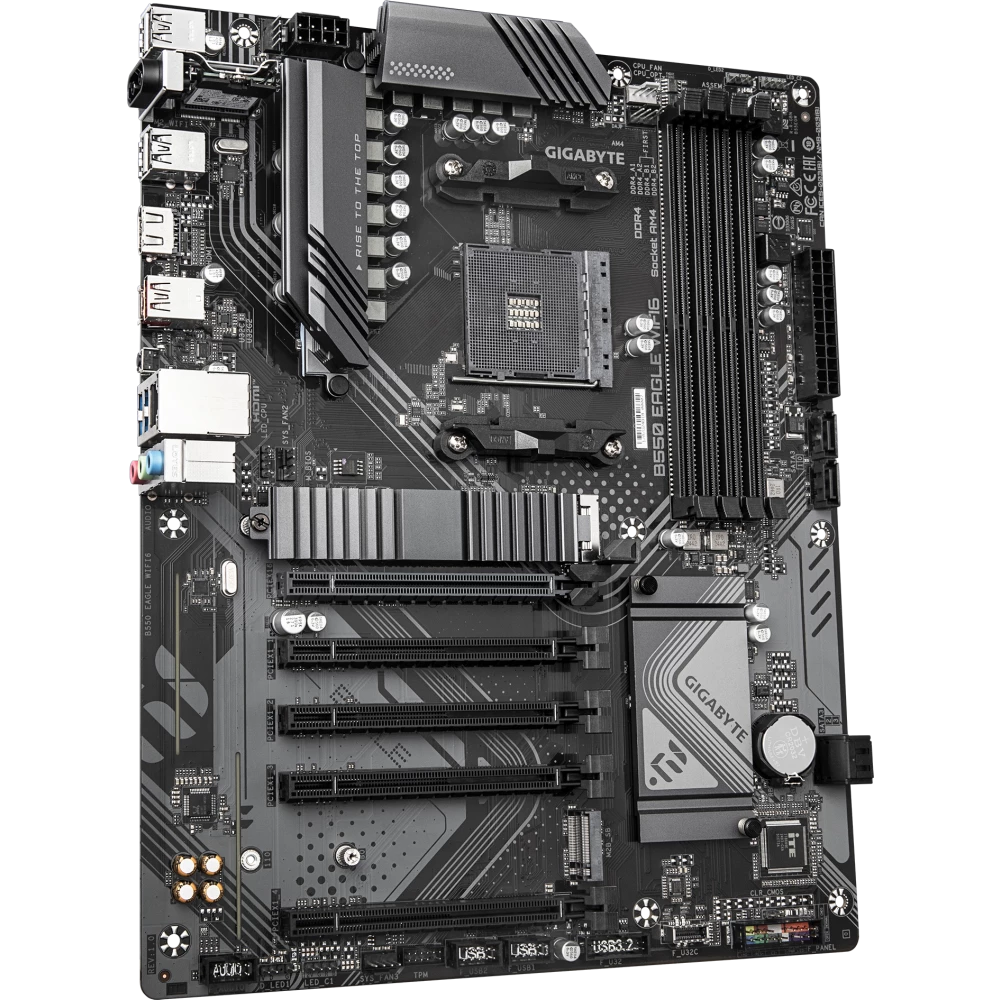

MB Gigabyte B550 EAGLE WIFI6 Soc-AM4 (B550) 2xPCI-Ex16 2xM.2 1GbE LAN Wi-Fi 6 BT 5.3 2xARGB+2xRGB 4xDDR4 32…

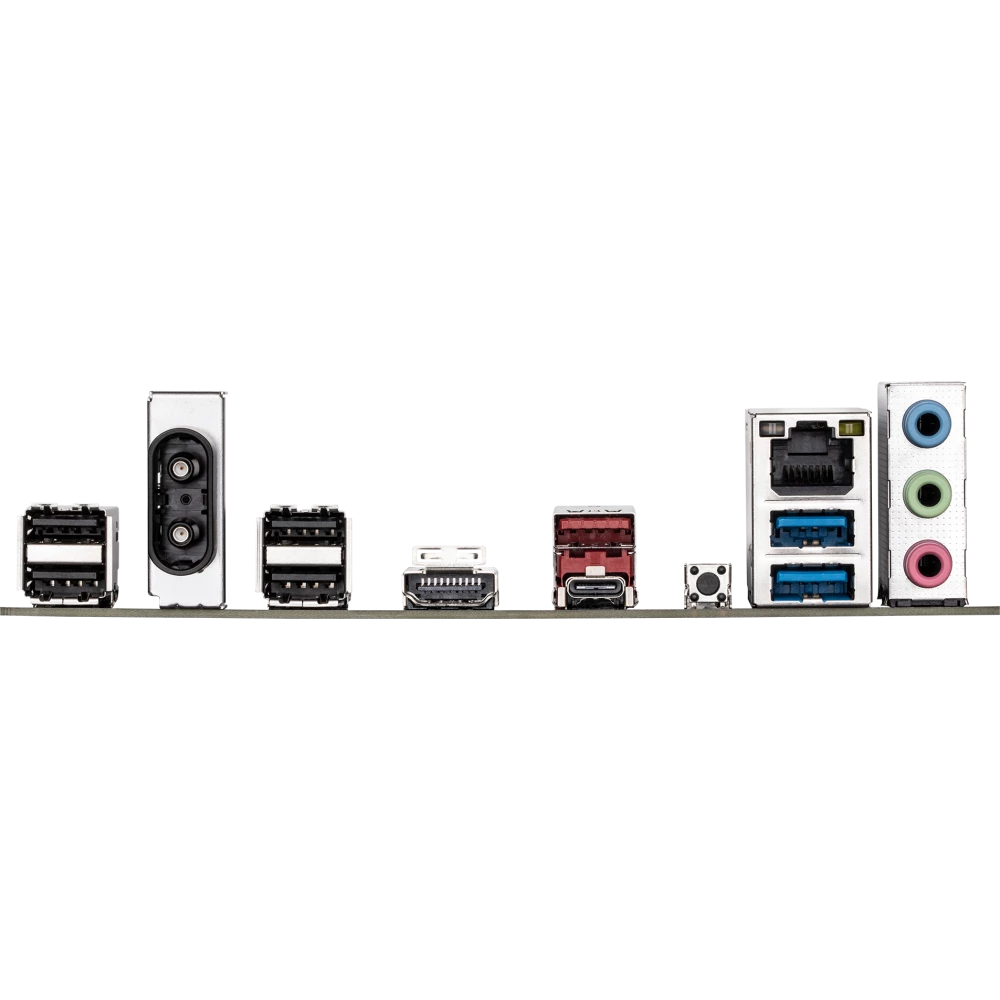

4 × USB 2.0/1.1 разъём

2 × antenna connectors (1T1R)

1 × HDMI разъём

1 × USB 3.2 Gen 2 Type-A /USB 3.2 Gen 1 разъём (red)

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 1

1 × Q-Flash Plus кнопка

1 × RJ-45 разъём

2 × USB 3.2 Gen 1 разъём

3 × аудиоразъёмы

Actual support may vary by CPU.

AMD Socket AM4, support for:

AMD Ryzen 5000 G-Series Processors/

AMD Ryzen 5000 Series Processors/

AMD Ryzen 4000 G-Series Processors/

AMD Ryzen 3000 G-Series Processors/

AMD Ryzen 3000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

4 × DDR4 DIMM sockets supporting up to 128 ГБ (32 ГБ single DIMM capacity) of system memory

Support for DDR4 3200/2933/2667/2400/2133 МТ/с memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible разъём.

(Graphics specifications may vary depending on CPU support.)

Maximum shared memory of 16 ГБ

1 × PCI Express x16 slot (PCIEX16), integrated in the CPU:

 AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode

 AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 4 × PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)

1 × M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs

- AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 × M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs

4 × SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Realtek Wi-Fi 6 RTL8851BE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5 ГГц carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 80MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × CPU fan header

1 × CPU fan/water cooling pump header

3 × system fan headers

2 × addressable LED strip headers

2 × RGB LED strip headers

1 × CPU cooler LED strip/RGB LED strip header

2 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 1

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 × Clear CMOS jumper
