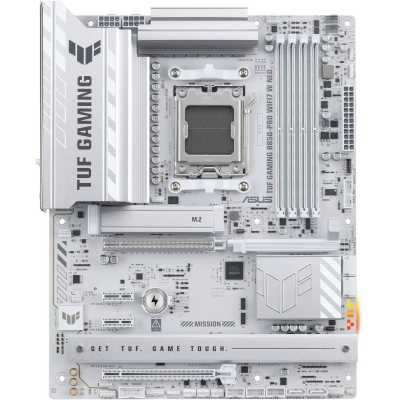

Материнская плата ASUS TUF Gaming B850-Pro WIFI7 W Neo

4 x DIMM slots, max. 256GB, DDR5

Supports up to

8400+MT/s(OC)*/8200+MT/s(OC)** with Ryzen 9000 Series Processors,

9000+MT/s(OC)*/8600+MT/s(OC)** with Ryzen 8000 Series Processors,

8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM***

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.

** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://www.asus.com/support/faq/1042256/ .

*** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

*** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

1 x DisplayPort**

1 x HDMI port***

* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

AMD Ryzen 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)***

2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).

** Specifications vary by CPU types.

*** The PCIEX16(G4) slot shares bandwidth with the M.2_3 slot. When either the PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center / for the list of supported peripherals.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s ports

* Specifications vary by CPU types.

** The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either the PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.

Wi-Fi 7 (Realtek RTL8922AE)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth

Bluetooth v5.4 (suppports LE Audio)***

* Wi-Fi features may vary depending on the operating system.

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback**

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C )

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button

1 x Clear CMOS button

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x 10-1 pin Front Panel System header

1 x Thunderbolt (USB4 ) header
