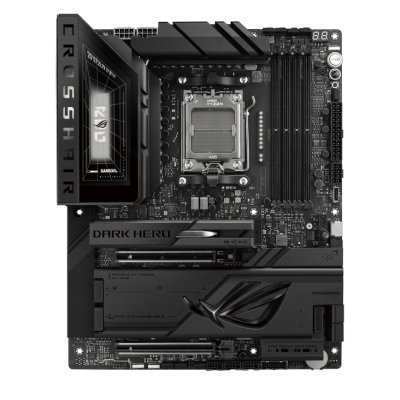

Материнская плата ASUS ROG Crosshair X870E Dark Hero

4 x DIMM slots, max. 256GB, DDR5

Supports up to

8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen 9000 Series Processors,

9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen 8000 Series Processors,

8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen 7000 Series Processors,

ECC and Non-ECC, Un-buffered DIMM*"

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

Supports DIMM Fit and DIMM Fit Pro

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.

*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/

1 x HDMI port*

2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

*Supports 4K@60Hz as specified in HDMI 2.1.

**Supports max. 4K@60Hz as specified in DisplayPort 1.4a

***The display function of the Type-C port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.

AMD Ryzen 9000 & 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*

2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)

AMD Ryzen 8500 & 8300 Series Desktop Processors*

2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

* Specifications vary by CPU types.

** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*

AMD Ryzen 8500 & 8300 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)

AMD X870E Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode)

2 x SATA 6Gb/s ports

ASMedia ASM1162 Controller

2 x SATA 6Gb/s ports

* The USB4 40Gbps ports and the M.2 Socket 3 slot (M.2_2) share the available bandwidth. When a device is installed in the M.2_2 slot, both the USB4 controller and the M.2_2 slot operate at up to x2 mode. By configuring the M.2_2 slot in the BIOS, the M.2_2 slot can operate at up to x4 mode. However, enabling this setting will disable the USB4 40Gbps ports.

"Wi-Fi 7 (MediaTek MT7927)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth

Bluetooth v5.4 (suppport LE Audio)***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel"

Audio Features

- SupremeFX Shielding Technology

- ESS ES9219 QUAD DAC

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

2 x USB4 (40Gbps) ports (2 x USB Type-C )

9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C )

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 10Gb Ethernet port

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x AIO Q-Connector

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

1 x 8-pin PCIe Power connector

Storage Related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 20Gbps connectors (support USB Type-C )

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Alteration PCIe mode switch

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x ReTry button

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

1 x LN2 Mode jumper
