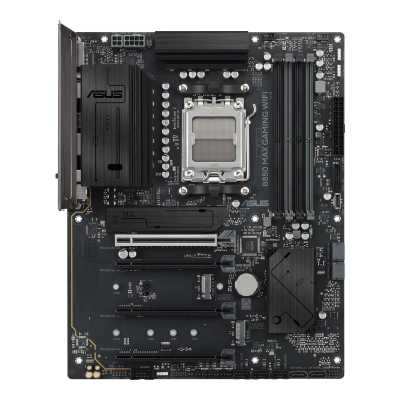

Материнская плата ASUS B850 Max Gaming WiFi

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

Supports up to AMD 170W CPU

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

4 x DIMM slots, max. 256GB, DDR5 ECC and Non-ECC Un-buffered DIMM*

Supports up to

8400+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen 9000 Series Processors,

9000+MT/s(OC)**/8600+MT/s(OC)*** with Ryzen 8000 Series Processors,

8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen 7000 Series Processors,

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO )

ASUS Enhanced Memory Profile (AEMP)

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.

*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://www.asus.com/support/faq/1042256/ .

1 x DisplayPort**

1 x HDMI port***

* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

AMD Ryzen 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x16 slots (support x1 mode)***

* Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).

** Specifications vary by CPU types.

*** PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. SATA6G_1/2 will be disabled when either PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)

4 x SATA 6Gb/s ports**

* Specifications vary by CPU types.

** PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. SATA6G_1/2 will be disabled when either PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.4 (supports LE Audio)**

* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.

** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C )

2 x USB 5Gbps ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

1 x 4-pin +12V CPU Power connector

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps connector (supports USB Type-C )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin Front Panel System header

1 x Thunderbolt (USB4 ) header
