Материнская плата Asus ROG Strix X870-I Gaming WIFI

2 x DIMM slots, max. 128GB, DDR5

Supports up to

8400+MT/s(OC) with Ryzen 9000 Series Processors,

8600+MT/s(OC) with Ryzen 8000 Series Processors,

8000+MT/s(OC) with Ryzen 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*"

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory

configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMI port**

2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

**** VGA resolution support depends on processors' or graphic cards' resolution.

AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*

* Specifications vary by CPU types.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*

AMD Ryzen 9000 & 7000 Series Desktop Processors*

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)

AMD X870 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

2 x SATA 6Gb/s ports***

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1

*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

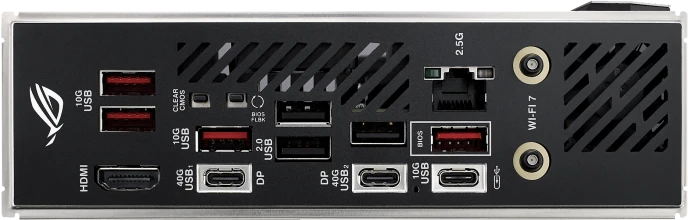

2 x USB4 (40Gbps)(2 x USB Type-C )

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C , 1 port supports ROG STRIX HIVE II)

3 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Intel 2.5Gb Ethernet port

1 x BIOS FlashBack button

1 x Clear CMOS button

Fan and Cooling Related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

USB

1 x USB 10Gbps connector (supports USB Type-C )

1 x USB 5Gbps header support(s) 2

additional USB 5Gbps ports

Miscellaneous

2 x Addressable Gen 2 headers

1 x 2-pin Power Button header

1 x Thermal Sensor header

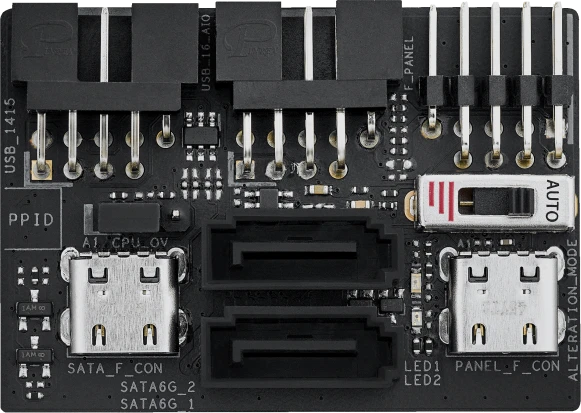

2 x USB Type-C connectors to install ROG FPS card

ROG FPS card

2 x SATA 6Gb/s ports

1 x CPU Over Voltage jumper

1 x Front Panel header

1 x Alteration PCIe Mode switch

2 x USB 2.0 headers support 3

additional USB 2.0 ports
