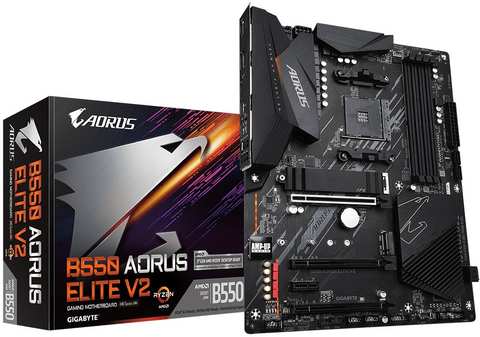

MB Gigabyte B550 AORUS ELITE V2 Soc-AM4 (B550) 3xPCI-Ex16 PCI-Ex1 2xM.2 2.5GbE LAN 2xARGB+2xRGB RAID 0/1/10…

1 × DisplayPort

1 × HDMI разъём

2 × USB 3.2 Gen 2 Type-A*/USB 3.2 Gen 1 разъём (red)

* For AMD Ryzen 5000 Series/3000 Series Processors only.

3 × USB 3.2 Gen 1 разъём

2 × USB 2.0/1.1 разъём

1 × Q-Flash Plus кнопка

1 × RJ-45 разъём

1 × optical S/PDIF Out connector

5 × аудиоразъёмы

AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series, Ryzen 3000 Series and Ryzen 3000 G-Series Processors

(Please refer "CPU Support List" for more information.)

4 × DDR4 DIMM sockets supporting up to 128 ГБ (32 ГБ single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC memory (ECC mode) support varies by CPU

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor: 1 × DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 ГБ

1 × PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen 5000 Series* and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode

* Actual support may vary by AMD CPU's specification

- AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 × PCI Express x16 slot (PCIEX2), integrated in the Chipset:

- Supporting PCIe 3.0 x2 mode

1 × PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

1 × PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

1 × M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

- AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 × M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

- Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 × SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

2 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × CPU fan header

1 × water cooling CPU fan header

3 × system fan headers

1 × CPU cooler LED strip/RGB LED strip header

2 × addressable LED strip headers

2 × RGB LED strip headers

1 × front panel header

1 × front panel audio header

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 1

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 × Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
