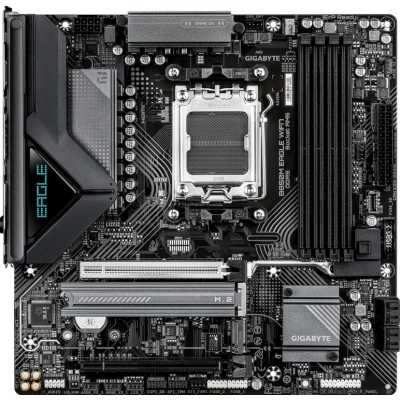

MB Gigabyte B850M EAGLE WIFI7

1 × HDMI разъём*

2 × DisplayPorts*

1 × Q-Flash Plus кнопка

1 × PS/2 клавиатура/мышь разъём

1 × USB 3.2 Gen 2 Type-A разъём (red)

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 2

2 × USB 3.2 Gen 1 разъём

4 × USB 2.0/1.1 разъём

1 × RJ-45 разъём

2 × antenna connectors (2T2R)

3 × аудиоразъёмы

* Actual support may vary by CPU.

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 2 × DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

1 × PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 × PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

1 × M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 × M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 × SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Realtek Wi-Fi 7 RTL8922AE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 ГГц band availability depends on individual country's regulations.

*** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × CPU fan header

1 × CPU fan/water cooling pump header

1 × system fan header

1 × system fan/water cooling pump header

3 × addressable RGB Gen2 LED strip headers

1 × RGB LED strip header

4 × SATA 6Gb/s connectors

2 × M.2 Socket 3 connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 2

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × reset кнопка

1 × reset jumper

1 × Clear CMOS jumper
