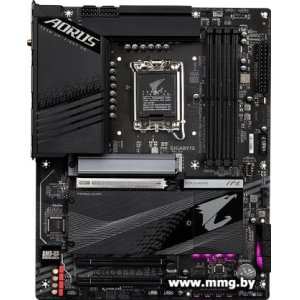

Материнская плата Gigabyte Z790 Aorus Elite AX rev. 1.1

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Integrated Graphics Processor-Intel HD Graphics support: 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible разъём.

1 × DisplayPort, supporting a maximum resolution of 4096x2304@60

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

CPU: 1 × PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset: 2 × PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

CPU: 1 × M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset: 2 × M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

1 × M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

6 × SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Wi-Fi 6E AX211 (For PCB rev. 1.0 / 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Гбит/с data rate

Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 ГГц carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Гбит/с data rate

* Actual data rate may vary depending on environment and equipment.

* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

1 × USB Type-C разъём, с поддержкой USB 3.2 Gen 2x2

2 × USB 3.2 Gen 2 Type-A разъём (red)

3 × USB 3.2 Gen 1 разъём

4 × USB 2.0/1.1 разъём

2 × SMA antenna connectors (2T2R)

1 × HDMI разъём

1 × DisplayPort

1 × RJ-45 разъём

1 × optical S/PDIF Out connector

2 × аудиоразъёмы

Actual support may vary by CPU.

1 × 24-pin ATX main power connector

2 × 8-pin ATX 12V power connectors

1 × CPU fan header

1 × water cooling CPU fan header

3 × system fan headers

1 × system fan/water cooling pump header

2 × addressable LED strip headers

2 × RGB LED strip headers

4 × M.2 Socket 3 connectors

6 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 2

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

2 × Thunderbolt add-in card connectors

1 × Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 × reset кнопка

1 × Q-Flash Plus кнопка

1 × Clear CMOS кнопка

1 × reset jumper

1 × Clear CMOS jumper
