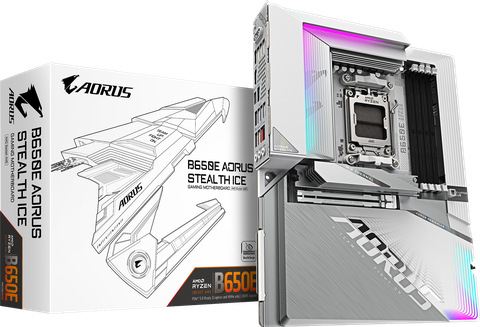

MB Gigabyte B650E AORUS STEALTH ICE

1 × Q-Flash Plus кнопка

2 × SMA antenna connectors (2T2R)

1 × HDMI разъём

1 × USB Type-C разъём (Note 2) (DisplayPort (Note 1))

2 × USB 3.2 Gen 2 Type-A разъём (red)

5 × USB 3.2 Gen 1 разъём

4 × USB 2.0/1.1 разъём

1 × RJ-45 разъём

3 × аудиоразъёмы

(Note 1) Actual support may vary by CPU.

(Note 2) This USB Type-C разъём supports up to 40 Гбит/с when using AMD Ryzen 8000 series processors, and up to 10 Гбит/с when using AMD Ryzen 9000/7000 series processors.

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800 МТ/с memory modules

4 × DDR5 DIMM sockets supporting up to 256 ГБ (64 ГБ single DIMM capacity)of system memoryDual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 × USB Type-C разъём with DisplayPort video output, supporting a maximum resolution of 3840x2160@144 Hz. * Support for DisplayPort 1.4 version and HDR.

- 1 × HDMI разъём, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible разъём.

- 1 × Front HDMI разъём, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)

This USB Type-C разъём supports up to 40 Гбит/с when using AMD Ryzen 8000 series processors, and up to 10 Гбит/с when using AMD Ryzen 9000/7000 series processors.

1 × PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

1 × M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

- AMD Ryzen 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0x4/x2 SSDs

1 × M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 × M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

4 × SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

MediaTek Wi-Fi 7 MT7925

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 ГГц carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 ГГц band availability depends on individual country's regulations.

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.

1 × 24-pin ATX main power connector

1 × 8-pin ATX 12V power connector

1 × CPU fan header

1 × CPU fan/water cooling pump header

3 × system fan headers

1 × system fan/water cooling pump header

2 × addressable RGB Gen2 LED strip headers

1 × RGB LED strip header

3 × M.2 Socket 3 connectors

4 × SATA 6Gb/s connectors

1 × front panel header

1 × front panel audio header

1 × USB Type-C header, с поддержкой USB 3.2 Gen 2x2

1 × USB 3.2 Gen 1 header

2 × USB 2.0/1.1 headers

1 × Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 × HDMI разъём (Note2)

1 × reset кнопка

1 × reset jumper

1 × Clear CMOS jumper

(Note 2) Only available with the AMD Radeon Graphics Processors.
