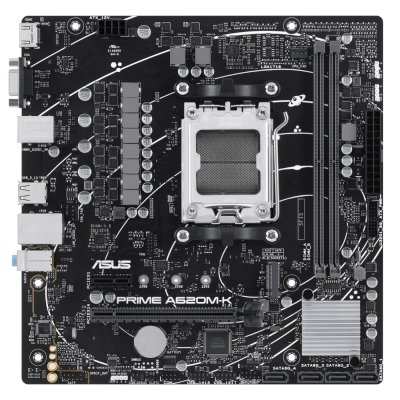

Материнская плата ASUS Prime A620M-K

2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ .

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

AMD Ryzen 9000 & 7000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD A620 Chipset

1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).

** Specifications vary by CPU types.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*

AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD A620 Chipset

4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x VGA port

1 x HDMI port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

2 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header
